Autoencoder: Distributed Training with Taktiny¶
In this tutorial, we’ll train a simple autoencoder on Kaggle using two T4 GPUs.
%pip install git+https://github.com/solitariusai/taktiny.git@experiment
%pip install -U 'jax[cuda]==0.11.1'
Taktiny uses Qwix, which depends on Flax. If a JAX update removes an API that the installed Flax version still uses, importing Taktiny may fail. In that case, install a JAX version compatible with Qwix and Flax.
1. Import Packages¶
from datasets import load_dataset
import jax.numpy as jnp, jax
from jax.sharding import PartitionSpec as P
import matplotlib.pyplot as plt
import optax
import numpy as np
import time
import grain.python as grain
from taktiny import nn
from taktiny.data import DataLoader, BatchMap
from taktiny.takt import Optimizer
jax.devices()
[CudaDevice(id=0), CudaDevice(id=1)]
On Kaggle, jax.devices() should show two CUDA devices if you selected the T4 x2 accelerator.
2. Prepare Dataset¶
We’ll load uoft-cs/cifar10 from Hugging Face with load_dataset.
dataset = load_dataset('uoft-cs/cifar10')
fig, axes = plt.subplots(2, 5, figsize=(10, 4))
for i, ax in enumerate(axes.flat):
ax.imshow(dataset['train'][i]['img'])
ax.axis("off")
plt.tight_layout()
plt.show()

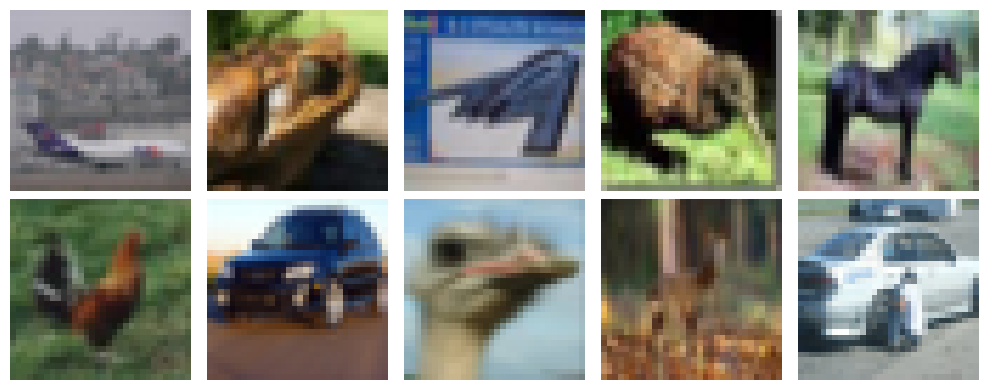

Plot a few examples to see what the images look like.
batch_size = 512
num_epochs = 30
logging_steps = 10
total_rows = dataset['train'].num_rows
learning_rate = 1e-3
These values will control the training run.
3. Define Model¶
The encoder uses nn.Conv to downsample the images, while the decoder uses nn.ConvTranspose to upsample them.
@nn.module
class Autoencoder:
def __init__(self, *, rngs: nn.Rngs):
self.encoder = nn.Sequential([
nn.Conv(3, 32, (3, 3), stride=(2, 2), rngs=rngs, padding='SAME', partition_spec=P()),
nn.ReLU(),
nn.Conv(32, 64, (3, 3), stride=(2, 2), rngs=rngs, padding='SAME', partition_spec=P()),
nn.ReLU(),
nn.Conv(64, 96, (3, 3), stride=(2, 2), rngs=rngs, padding='SAME', partition_spec=P()),
nn.ReLU(),
])
self.decoder = nn.Sequential([
nn.ConvTranspose(96, 64, (3, 3), stride=(2, 2), rngs=rngs, padding='SAME', partition_spec=P()),
nn.ReLU(),
nn.ConvTranspose(64, 32, (3, 3), stride=(2, 2), rngs=rngs, padding='SAME', partition_spec=P()),
nn.ReLU(),
nn.ConvTranspose(32, 3, (3, 3), stride=(2, 2), rngs=rngs, padding='SAME', partition_spec=P()),
nn.Sigmoid(),
])
def __call__(self, x: jax.Array):
x = self.encoder(x)
return self.decoder(x)
The kernel size (3, 3) makes these 2D convolutions. CIFAR-10 images have shape \(32\times32\times3\). In the first convolution, each kernel covers a \(3\times3\) spatial region across all three input channels. With stride=(2, 2) and padding='SAME', the output has \(16\times16\) spatial positions and 32 channels: \(16\times16\times32\).
Setting partition_spec=P() replicates each layer’s parameters across the devices. See JAX PartitionSpec for more on partition specifications.
4. Prepare for Training¶
Next, create a mesh with a data axis spanning the available devices and set it as the active mesh.
mesh = jax.make_mesh((len(jax.devices()),), ('data',))
jax.set_mesh(mesh)
The dataset provides PIL images. The collation function converts each image to an RGB NumPy array and stacks the arrays into a batch.
def collate_images(rows):
return {
"img": np.stack([
np.asarray(row["img"].convert("RGB"), dtype=np.uint8)
for row in rows
])
}
rngs = nn.Rngs(0)
model = Autoencoder(rngs=rngs)
dataloader = DataLoader(
dataset["train"],
batch_size=batch_size,
collate_fn=collate_images,
worker_count=4,
worker_buffer_size=2,
shuffle=True,
read_options=grain.ReadOptions(
num_threads=0,
prefetch_buffer_size=0,
),
partition_spec=P("data"),
num_epochs=num_epochs,
)
Initialize the model and create a data loader for training. partition_spec=P("data") places batches across the mesh’s data axis.
def mse_loss(model, batch):
x = batch["img"].astype(jnp.float32) / 255.0
return jnp.square(model(x) - x).mean()
@jax.jit
def train_step(model, optimizer, batch):
loss, grad = jax.value_and_grad(mse_loss)(model, batch)
model = optimizer.update(model, grad)
return model, optimizer, loss
The loss function converts pixel values to the \([0, 1]\) range by dividing by 255, then computes mean squared error between the reconstruction and the input. Each call to train_step updates the model parameters and optimizer state.
tx = optax.adamw(learning_rate)
optimizer = Optimizer(model, tx)
Create an Optax AdamW transformation and wrap it with takt.Optimizer.
5. Training¶
Track epochs by counting the examples processed in each batch. Because drop_remainder=False by default, the final batch of an epoch may be smaller when the dataset size is not divisible by batch_size.
window_steps = 0
epoch = 0
accm = 0
losses = []
start = time.perf_counter()
for step, batch in enumerate(dataloader):
model, optimizer, loss = train_step(model, optimizer, batch)
window_steps += 1
accm += len(batch['img'])
if accm >= total_rows:
epoch += 1
accm -= total_rows
if step % logging_steps == 0:
jax.block_until_ready((model, optimizer, loss))
losses.append(loss)
elapsed = time.perf_counter() - start
print(
f'[{epoch} / {num_epochs}; step {step}] '
f'loss {loss:.4f} [{elapsed / window_steps:.2f}s/it]'
)
window_steps = 0
start = time.perf_counter()
6. Results¶

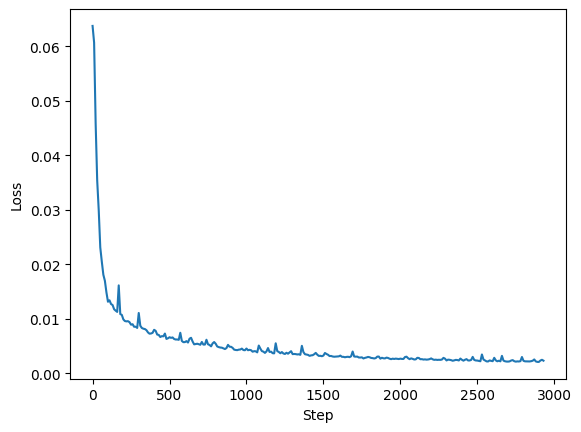

After training, plot the recorded losses to see how the model improved.
Create a separate data loader for the test set and calculate mean squared error (MSE). Lower values indicate better reconstructions.
test_dataloader = DataLoader(
dataset["test"],
batch_size=batch_size,
collate_fn=collate_images,
worker_count=4,
worker_buffer_size=2,
shuffle=True,
read_options=grain.ReadOptions(
num_threads=0,
prefetch_buffer_size=0,
),
partition_spec=P("data"),
num_epochs=num_epochs,
)
test_losses = []
for batch in test_dataloader:
loss = mse_loss(model, batch)
test_losses.append(loss)
test_mse = jnp.mean(jnp.stack(test_losses))
print("test MSE:", test_mse)
test MSE: 0.002346095
Another useful metric is peak signal-to-noise ratio (PSNR). Higher values indicate better reconstructions.
psnr = -10 * jnp.log10(test_mse)
print("PSNR:", psnr, "dB")
PSNR: 26.296543 dB

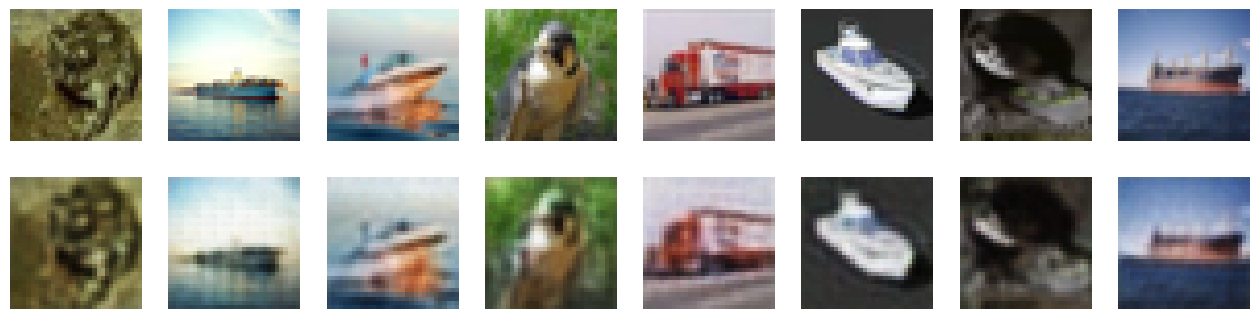

Finally, choose a few test images and compare them with the model’s reconstructions.
batch = next(iter(test_dataloader))
rand_idx = jax.random.randint(rngs(), 8, 0, batch_size).tolist()
x = np.asarray(jax.device_get(batch["img"]))[rand_idx]
x_hat = model(x / 255.0)
fig, axes = plt.subplots(2, 8, figsize=(16, 4))
for i in range(8):
axes[0, i].imshow(x.astype(jnp.uint8)[i])
axes[0, i].axis("off")
axes[1, i].imshow((x_hat * 255.0).astype(jnp.uint8)[i])
axes[1, i].axis("off")
plt.show()
